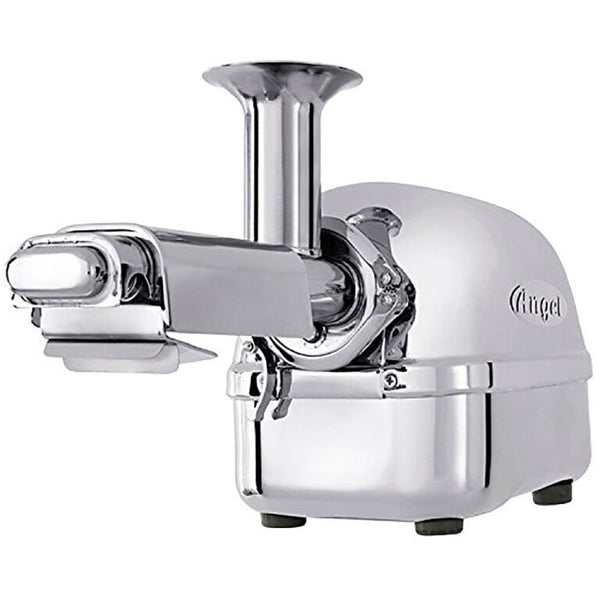

Angel 5500 Juicer

Operation and handling of the Angel Juicer

The Angel Juicer is easy to assemble. All in all, there are only 4 parts – twin gears , screen housing, feed chute and the screen cover – have to be put together. The feed chute has a diameter of 4.3 cm – accordingly, the ingredients have to be cut a little smaller than this.

There is a power switch on the back of the Angel Juicer, which is used to put the device into stand-by mode. The control panel with the 3 functions (start, stop and reverse) is to the right-hand side of the machine. Simply press the start button to start juicing. Now feed the juice ingredients into the chute and gently press the pusher/plunger towards the press rollers. In a 3-stage process, the ingredients are now crushed, mixed and pressed. The juice exits directly into the juice jug below the sieve housing, while the pomace is ejected into the pomace collection container at the front.
The juicing process is finished when all the ingredients have come out in the form of pulp and no more juice drips out of the juice outlet. Now switch the control panel to stop and turn off the unit using the power switch.

Tip: It is best to let the Angel Juicer run a little longer, as there will still be a few drops of juice, even if no more pulp comes out.

When the Angel Juicer is blocked
It is possible that the Angel Juicer’s safety sensor interrupts the juicing process because the press rollers are blocked. This could happen if a hard foreign object (cutlery, etc.) accidentally lands in the juicer. The slow juicer will then stop by itself and beep. The blockage is now easily released with the reverse function.
While the reverse function has to be initiated manually on the Angel Juicer 5500, it kicks in automatically on the Angel Juicer 7500 and Angel Juicer 8500S. The twin press rollers now rotate backwards. The blockage has been resolved. Now the juicing process has to be started again with the start button.

Cleaning the Angel Juicer
The Angel Juicer is best cleaned immediately after use. This prevents the juice residues from drying out and the individual parts can be rinsed easily directly under lukewarm water. To do this, the Angel Juicer is disassembled. Before you clean the screen, feed chute, press rollers and screen cover under running water, the first step is to roughly remove the pulp residues directly into your organic waste bin. This prevents the drain in the sink from clogging. To clean the sieve, use the scraper to better remove possible fibre residues from fruit, vegetables and green leaves. Then you clean all parts with the cleaning brush provided. For the feeding chute, we recommend that you use a round cleaning brush as found in most households. Finally, dry off the juicer parts with a kitchen towel and reassemble the Angel Juicer. Rinse the juice container and pulp container well and dry them.

Since the stainless steel parts of the Angel Juicer are dishwasher safe, you can also clean them in the dishwasher. We recommend cleaning in the dishwasher as an occasional thorough cleaning. Before doing this, you should still quickly rinse off all components by hand and remove any coarse pulp residue.

Recommended accessories for the Angel Juicer
Angel Juicer coarse screen for juices made from soft ingredients
The Angel Juicer is always delivered with a fine screen, which is perfect for most applications. However, if you also drink pure juices made from soft ingredients, i.e. without adding hard ingredients such as carrots, celery or beetroot, we greatly suggest also getting the coarse screen, otherwise there will be too much backlog when juicing. As a rule of thumb for what is soft and what is hard, everything that you can easily crush in your hand is considered a soft ingredient: This includes, for example, pineapple, bananas, mango, tomatoes, kiwi fruit, etc. Carrots are considered to be hard ingredients, as are beetroot, leafy greens, celery, etc.

Angel Juicer wooden pusher with silicone ring
You can use it to make clear juices very easily from soft ingredients and overripe fruit. Thanks to the silicone ring on the wooden pusher, the ingredients are moved to the press rollers with help of the air pressure created by the seal, which very effectively prevents the pressurised ingredients from backing up or liquid overflowing from the feed chute. But be careful: don’t press too hard, otherwise the juice will drip out of the device. With us, the wooden pusher with silicone ring is included with every Angel Juicer.
